SUB 3x3 Special Edition

SUB 3x3 special edition

For this special edition our SUB is equipped with the one of a kind 3x3 NINE gearshift. If you are not familiar with 3x3, please head over to their website. The 3x3 NINE is completely maintenance free and offers 9 gears with a 554% ratio.

TECHNICAL DATA & EQUIPMENT

• Frame: unisex, CroMo, integrated cable routing
• Colour: blue or copper
• Size: one size (fits riders 150 cm to 200 cm)

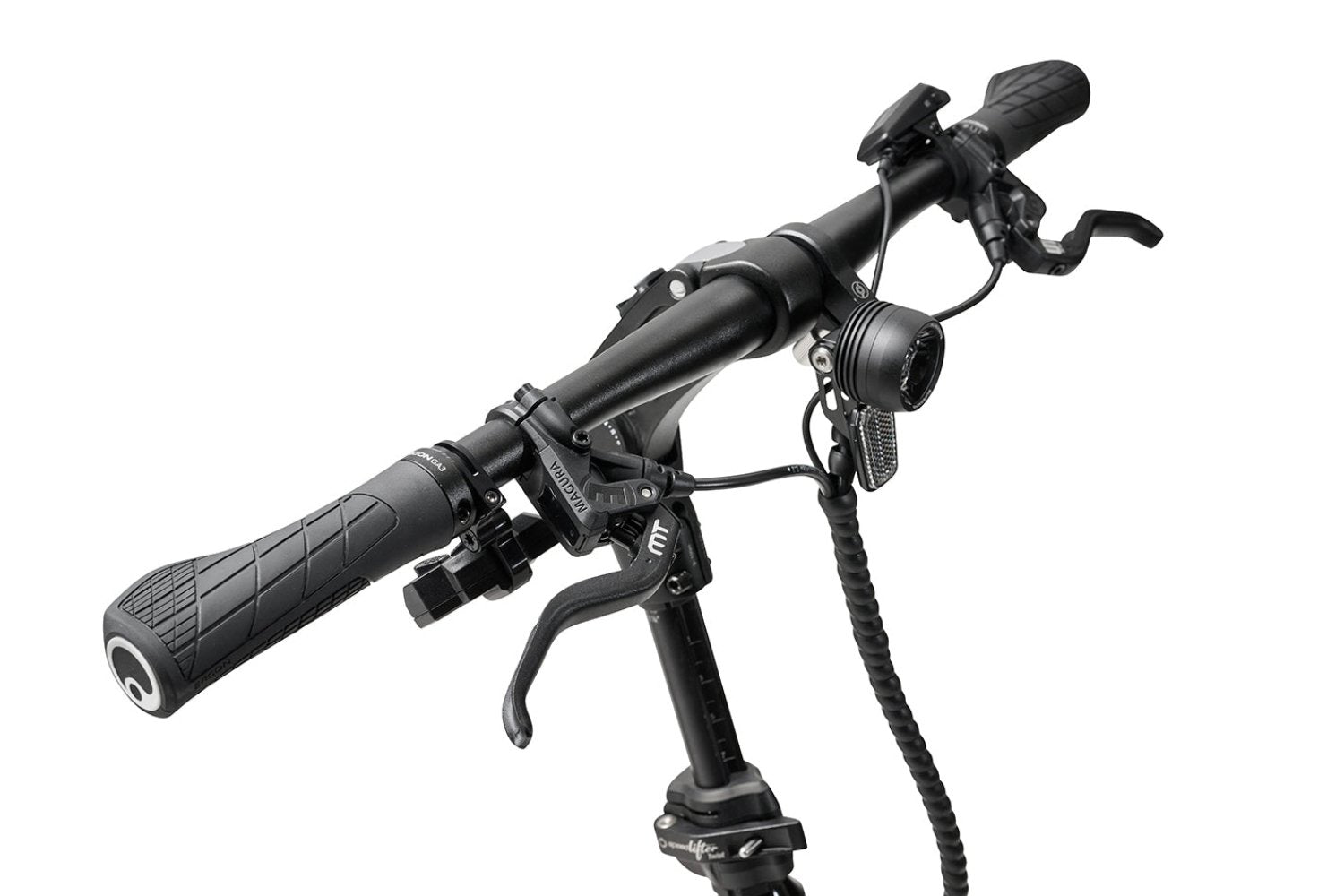

• Handlebar: VELLO handlebar (640 mm)
• Grips: ergonomic grips
• Fork: VELLO SUB /Material: aluminium/ 20'' /IS-intake/ Thru axle /for tires until 60-406 (20x 2,35) /Integrated cable routing
• Saddle: gel saddle with carrying handle
• Seatpost: VELLO/Ø31.6/400 mm
• Telescopic stem: height adjustable and rotatable to 90degrees, without tools (by.schulz/Speedlifter Twist/T15)
• Stem: adjustable without tools, Satori/EZ3 with SP Connect mount (fits riders from 150 cm to 200 cm)

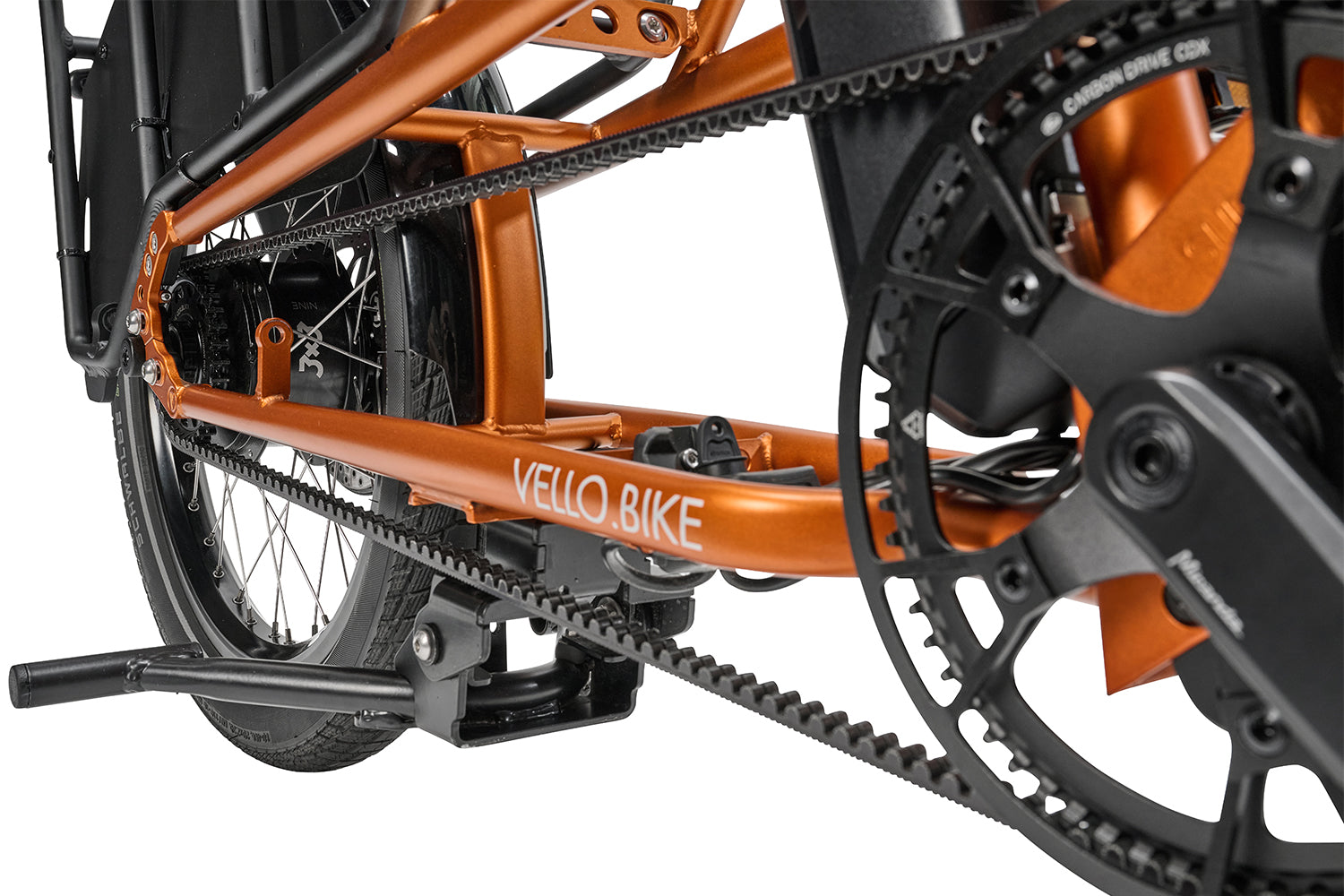

• Belt drive: Gates Carbon Drive/CDX/168T
• Front belt ring: belt, Gates Carbon Drive/CDX/ 60T
• Rear belt sprocket: belt, Gates Carbon Drive/CDX/ 22T
• Brake system front/rear: Magura®/MT5/ Four-piston-disc brakes
• Brake disc front/rear: Magura®/MDR-C/160mm/6-hole mount
• Front hub: VELLO/36-holes/12x100/Thru axle

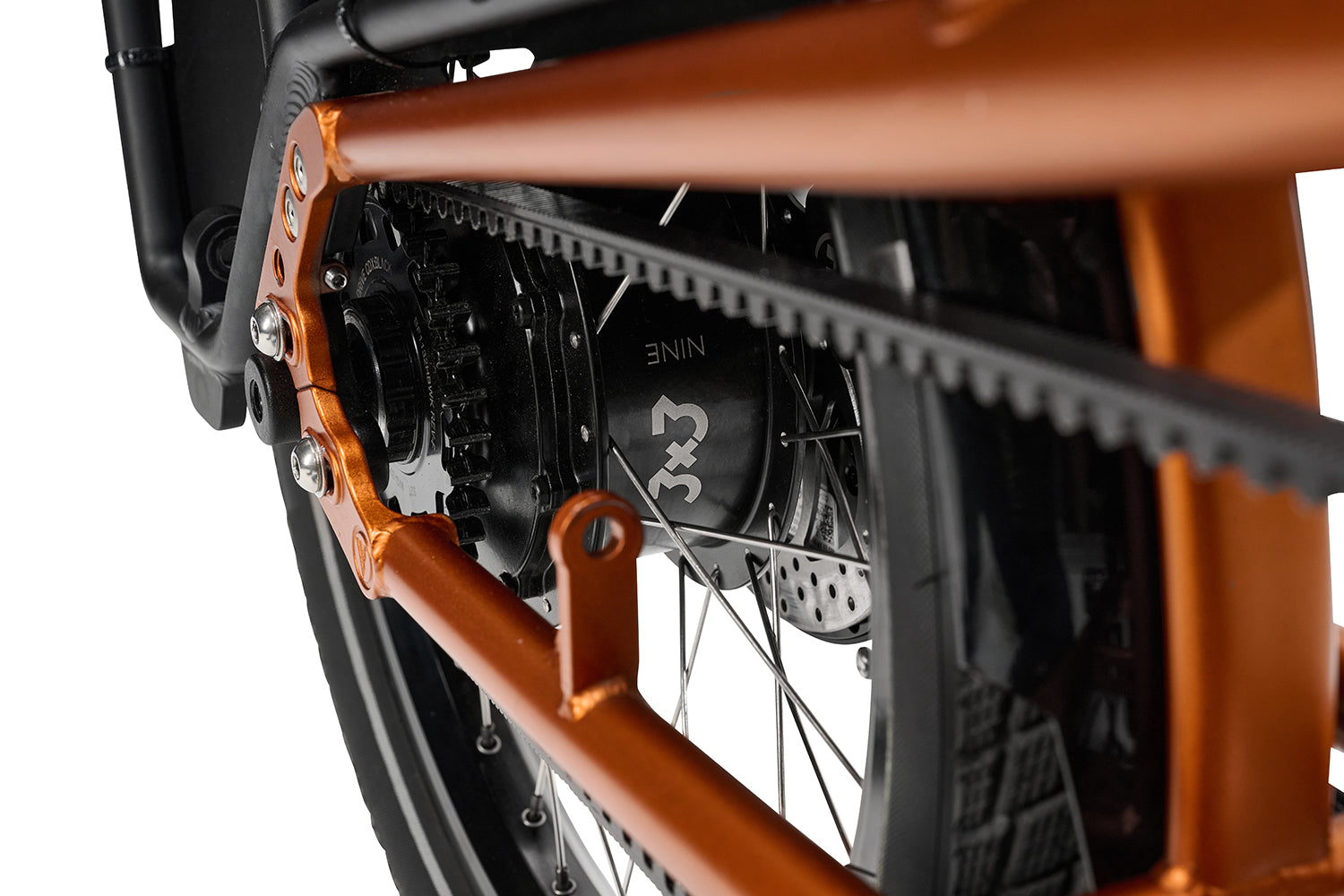

• Rear hub: 3x3 NINE (9 gears)
• Gearshift: 3x3 NINE E9
• Tyres: Wide 20’’ Schwalbe Pick Up 20x2.35 (60-406) for extra stability and comfort
• Motor: Bosch®/Performance Line CX (Cargo Line)/GEN4/85 Nm/Smart System (GPS-tracking-ready)
• Charging time: 4,5 Stunden (full charge)
• Battery: Bosch®/1x 400Wh or 545Wh(optional with upgrade) PowerPack battery/ Dual Battery Ready
• Battery charger: Bosch®/4A (230 V)
• Range: up to 250 km (dual battery)
• Pedals: VELLO full-aluminium folding pedals
• Front lights: Supernova/Mini 2-LDM (StVZO-approval)
• Rear lights: Supernova/TL3 Pro with brake light function for more safety
• Bell: VELLO
• Stand: VELLO
• Front mudguard: VELLO
• Rear mudguard: VELLO
• Rear rack (not detachable from the frame): Load carrier with payload 100kg/Aluminium/with integrated MIK-HD System/Footboard-ready
• MIK-HD integration: compatible with all MIK und MIK-HD accessories, amongst other tool-free mounting of up to 2 children seats
• Front carrier adapter system: enables tool-free mounting of various front carriers and bags (carrier block included)
• Meters of development: 1,71-9,50m
• Permissible total weight: 210 kg
• Weight of SUB (approx., without pedals, +/- 5%) with 400Wh battery: 28,9 kg
• Dimensions folded: H:85 cm x L:180 cm x W:29 cm
• Warranty: 5 years on frame and fork, 2 years on motor, battery

Scope of delivery includes a standard charger (type F, SchuKo, EU), reflectors, mobile phone mount, front carrier block, chain guard, spoke protector, mudguards, lights, bipod stand, Bosch® App and Bosch® remote control, rear carrier (cannot be separated from the frame).
